Types of Shoring in Dubai and UAE Construction

In the construction sector of Dubai and across the UAE, choosing the right types of shoring is essential for safe and stable excavations and structures. Shoring supports soil and prevents collapse during deep excavation for basements, tunnels, and infrastructure projects. Common shoring systems include sheet piles, soldier piles, diaphragm walls, secant piles, and contiguous piles, each suited for different soil conditions, space limitations, and groundwater levels.

Effective shoring design considers factors like load, depth, and surcharge from nearby structures to ensure safety and compliance with Dubai Municipality regulations. Understanding the main types of shoring helps contractors select the best solution for stable, durable, and efficient construction in Dubai and across the UAE.

Sheet Pile Shoring

Sheet pile shoring is one of the most common types of shoring in the UAE, especially for construction projects near ports, harbors, sea-sides, and other water bodies like ponds and creeks. In this method, long steel sheets are driven vertically into the ground using a vibratory hammer, creating a continuous upright wall that isolates excavations from surrounding soil and water.

These prefabricated sheet piles are often made in Z-sections or U-shaped sections, with interlocking connections that are welded or securely driven to the desired depth. This design forms a strong barrier that can separate excavation zones from nearby marine environments, ensuring stability and safety during the project.

In shoring construction, sheet piles provide several benefits:

• Fast to drive, install, and remove.
• Effective for soil retention in both sandy and loose ground.
• Suitable for piling and shoring in deep excavation areas, especially where water isolation is critical.


Because of their adaptability, sheet pile shoring is widely used by top shoring companies in UAE for coastal and marine projects in Abu Dhabi, Dubai, and other emirates, where shoring must handle both soil pressure and water seepage efficiently.

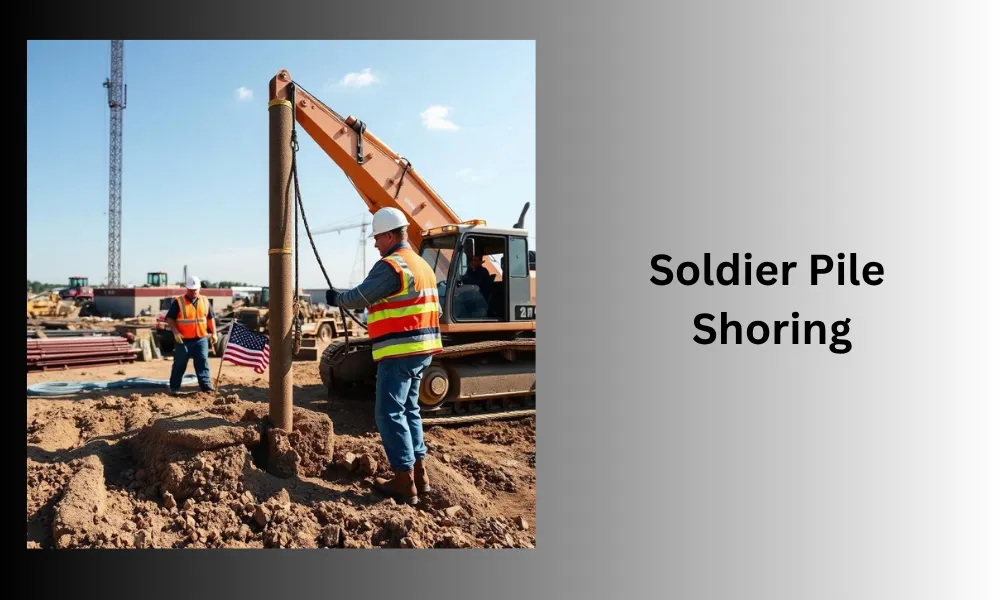

Soldier Pile Shoring

Soldier pile shoring is widely used in Dubai construction projects where space is limited, such as basement excavations, road widening, and deep trenching. This method involves drilling pre-drilled holes into the ground, then installing steel H-beams or I-beams at calculated intervals to support surrounding soil.

Between the beams, prefabricated concrete panels or timber boards are placed to form walls that maintain stability and prevent accidents. For deeper excavations, often over 5.0 meters, designs are carefully calculated to sustain surcharge loads from outside the excavation perimeter.

Its strength, durability, and adaptability to various soil conditions make soldier piles a cost-effective choice. When installed by trained, competent personnel, it ensures safety and reliability for even the most challenging projects in the UAE.

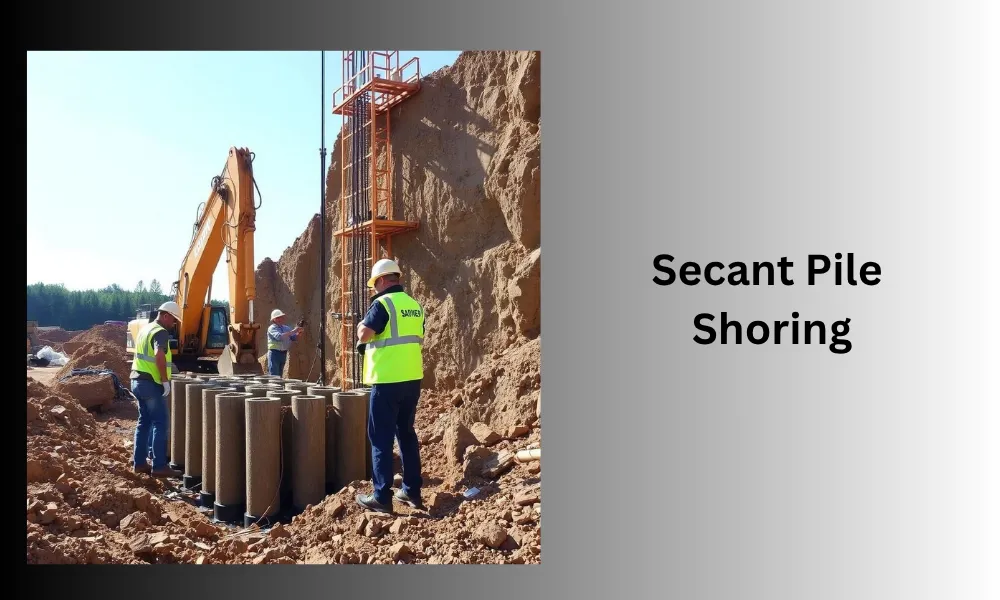

Secant Pile Shoring

Secant pile shoring is a preferred solution for deep excavations in tight spaces where existing structures and neighboring buildings are close. This method involves constructing overlapping concrete piles both reinforced primary piles and un-reinforced secondary piles which interlock to form a continuous, sturdy wall. The result is a strong, watertight barrier that supports the excavation and controls groundwater inflow.

Due to its design, secant pile walls handle significant surcharge loads from adjacent structures, making it an ideal choice in dense city settings and projects with limited open excavation room. The careful installation process involves drilling, casting, and placing steel cages within the piles, ensuring precise alignment and stability.

Choosing the right shoring contractors in Dubai and across the UAE ensures safe excavation management near existing buildings, minimizing ground movement and maintaining site safety throughout construction.

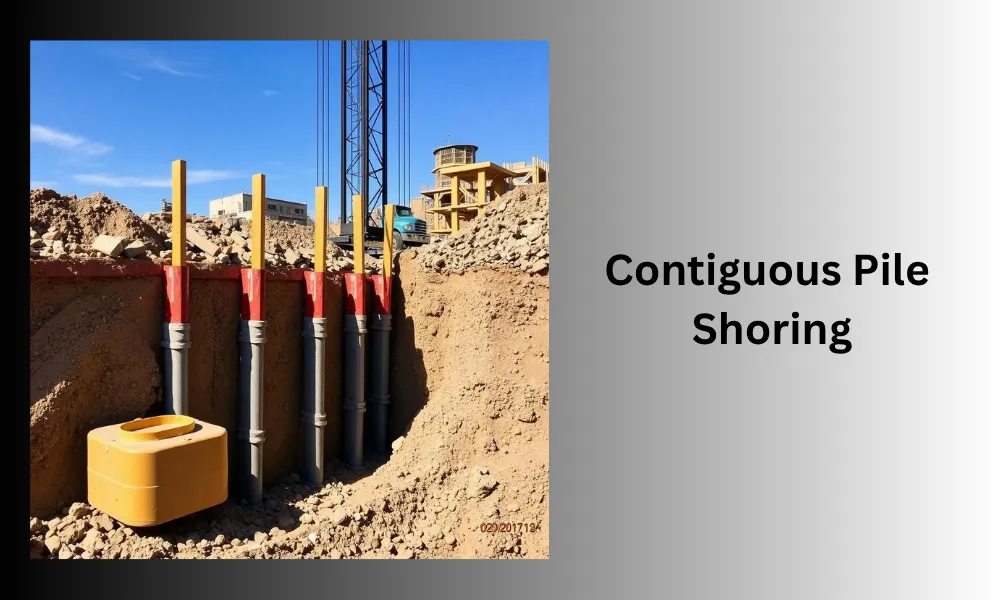

Contiguous Pile Shoring

Contiguous pile shoring is similar to secant pile shoring but consists of closely spaced piles, typically 2 to 6 inches apart, with their faces almost touching but not interlocking. This creates a tangent pile wall that is usually proposed for clay soils or dry, granular materials where water seepage between gaps is minimal or manageable.

Because small spaces remain between the piles, this method is not recommended for sites with high groundwater tables unless dewatering or grouting is applied to prevent water infiltration. It’s best suited for excavations in areas with low groundwater pressure and where soil drainage is not a major concern.

Contiguous piles are commonly used for medium-depth excavations and projects requiring effective piling and shoring without the expense of diaphragm walls. Its cost efficiency and ability to retain dry soils make it a popular choice for many Dubai and UAE construction projects with limited budgets and minimal water-related challenges.

Diaphragm Walls

Diaphragm walls are a premium type of shoring commonly used in deep excavations such as basements, tunnels, and large underground structures in the UAE. Constructed from reinforced concrete, these walls are built within narrow, deep trenches to provide a strong, permanent retaining wall that offers excellent structural support.

Their design allows them to resist heavy loads from surrounding soil and structures, making them ideal where space is limited and where long-term stability is critical. Compared to other shoring methods like cofferdams or temporary shores, diaphragm walls are harder to remove but last much longer, offering durability for major infrastructure projects such as metro stations and underground parking.

Additionally, diaphragm walls provide superior water resistance, essential for Dubai and UAE sites with high groundwater levels, ensuring safety and reducing the risk of soil collapse during construction.

For projects demanding maximum strength and longevity, diaphragm walls are one of the best shoring options available.

Conclusion

Shoring is an essential part of construction safety in Dubai and across the UAE, ensuring excavation stability, worker protection, and regulatory compliance. From sheet pile shoring for coastal projects to secant piles shoring for tight urban sites, each method serves a specific purpose.

When deciding what types of shoring suitable for your project, factors like soil condition, excavation depth, and water table level must be considered. Choosing the right shoring system not only prevents accidents but also keeps your project on time and within budget.
