Guide About Sheet Pile Shoring in Dubai and UAE

In construction projects of the UAE, especially those involving deep excavations and waterfront developments, sheet pile shoring is one of the most reliable and cost-effective solutions. Known for its ability to provide quick and strong excavation support, sheet piles are widely used across projects ranging from basements and ports to bridge foundations.

This guide explains everything you need to know about sheet pile shoring systems from Dubai’s coastal projects to Sharjah’s infrastructure, how they work, their applications, advantages, limitations, and key considerations before choosing them for your project.

What Are Sheet Piles?

Sheet piles are long, thin, interlocking steel sections that are driven vertically into the ground to create a continuous retaining wall. They are designed to resist lateral earth and water pressures, making them ideal for excavation support and waterfront construction across the emirates.

When these piles are installed side by side, they form a sheet piled wall. This wall can be either temporary (used during excavation) or permanent (forming part of the finished structure).

Key Features of Sheet Piles:

• Made from high-strength steel, though sometimes timber or concrete is used.
• Interlocking edges provide continuous soil and water resistance in UAE construction
• Can be reused in temporary applications.
• Installed by vibration, pressing, or impact hammers.

What Is Sheet Pile Shoring?

Sheet pile shoring is the method of using sheet piles to provide lateral support during excavation. The interlocking piles create a vertical wall that holds back soil and water, making it possible to excavate safely and efficiently.

The complete sheet pile shoring system may also include anchors, struts, or braces depending on the excavation depth and soil conditions.

If you want to explore other different types of shoring which are used in the UAE construction sector, visit our blog page and read the list of informational blogs from our website.

Applications of Sheet Pile Systems

Sheet piling is commonly used in:

• Basement Excavations: Temporary support for deep building foundations, especially for Dubai and Sharjah
• Waterfront Structures: Ports, harbors, seawalls, and riverbanks.
• Flood Protection: Temporary barriers to prevent water ingress.
• Bridge Construction: Retaining soil during pier and abutment excavation.
• Underground Utilities: Trenches for pipelines and cables.


In all these cases, sheet pile systems offer strong and adaptable support while minimizing disruption to nearby structures.

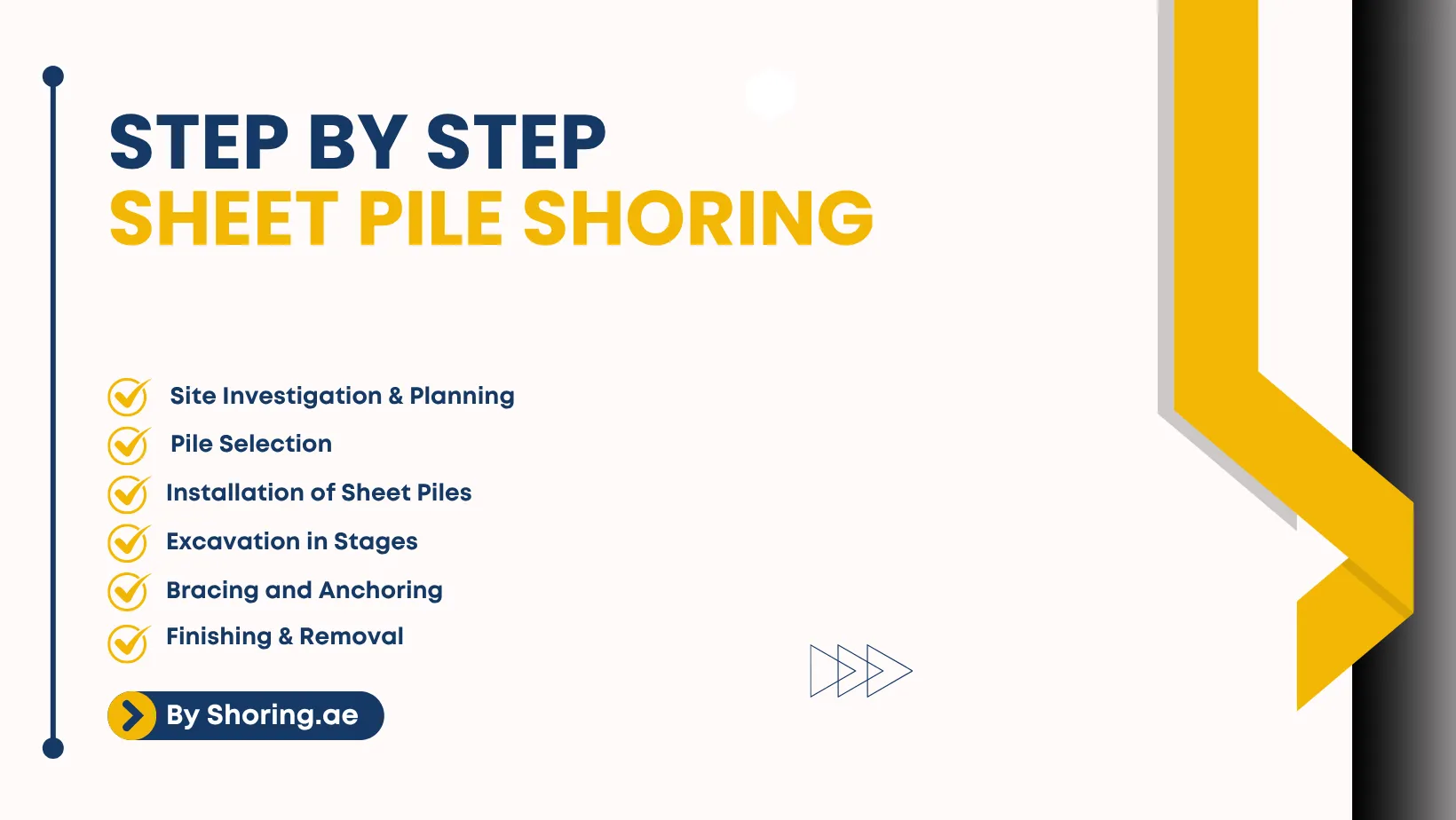

Step-by-Step Process of Sheet Pile Shoring in UAE

1. Site Investigation & Planning

Before starting, engineers analyze:

• Soil type (soft clay, sand, gravel).
• Groundwater conditions.
• Excavation depth and loads.
• Vibration sensitivity in urban areas.

This determines the type of sheet piles and installation method, along with custom design made by our expert shoring engineers by considering project requirements and Local regulations.

2. Pile Selection

Sheet piles vary in size, material, and shape. Common types used in Dubai and across the UAE include:

• U-shaped sheet piles – strong interlocks, widely used.
• Z-shaped sheet piles – greater strength for deep excavations.
• Straight web sheet piles – used in combination with anchors.


The pile’s material (usually steel) and thickness are chosen based on soil pressure and water levels.

3. Installation of Sheet Piles

Installation is done by driving piles into the ground using:

• Vibratory hammers – fast and efficient in sandy soils.
• Impact hammers – for dense or hard soils.
• Silent pressing – vibration-free, ideal in urban environments.


The piles are driven side by side, forming a sheet piled wall with interlocking joints for strength and water resistance across the emirates.

4. Excavation in Stages

Once the sheet pile shoring system is in place, excavation begins in stages. Depending on soil and depth, bracing or tiebacks may be added to reinforce the wall.

5. Bracing and Anchoring

Deep excavations require additional support such as:

• Horizontal struts (steel beams across excavation).
• Tieback anchors (drilled into soil behind the wall).
• Rakers (angled braces transferring load to the ground).

These reinforcements ensure the sheet pile systems remain stable against soil and water pressure.

6. Finishing & Removal (if temporary)

For permanent applications, the sheet piled wall may be left in place and integrated into the final structure. For temporary uses, the piles can be extracted and reused in other projects in UAE

Advantages of Sheet Pile Shoring in UAE Projects

• Speed of Installation: Fast to install, especially with vibratory hammers.
• Reusable: Steel sheet piles can be removed and reused in multiple projects across the UAE.
• Water Resistance: Excellent for controlling groundwater in excavations.
• Space-Saving: Requires minimal working area compared to sloped excavation in coastal regions of the Emirates.
• Eco-Friendly: Minimal soil displacement compared to diaphragm walls.


Limitations of Sheet Pile Systems

• Noise & Vibration: Installation can cause disturbances in urban areas of UAE
• Soil Suitability: Not effective in rocky or very dense soils.
• Depth Limitations: Effective for moderate excavation depths; very deep sites may require diaphragm walls or secant piles.
• Corrosion Risk: Steel piles need protective coatings in aggressive environments.

Safety Considerations in Sheet Pile Shoring

• Conduct soil testing before installation.
• Monitor vibration levels near sensitive buildings.
• Ensure interlocks are aligned correctly to prevent leaks.
• Regularly inspect bracing and tiebacks for stress.
• Follow municipality and construction code regulations by Dubai and UAE.

By adhering to these practices, sheet pile shoring systems can deliver reliable excavation support without compromising safety.

Uses of Sheet Piled Walls in Dubai and UAE

• Dubai Marina Projects: Sheet piles are widely used for waterfront developments.
• Harbor and Port Expansions: Sheet piling ensures stability in marine environments.
• Flood Defense Systems: Temporary sheet piled walls protect critical infrastructure.

These examples show how versatile sheet pile systems can be in both land-based and marine projects across the emirates.

Conclusion

Sheet pile shoring is one of the most efficient and versatile excavation support methods available today. By using interlocking sheet piles to form a sheet piled wall, shoring contractors in Dubai can safely manage soil and water pressures while working in challenging environments.

Whether used in deep basements, ports, or flood control projects, sheet pile systems provide a proven balance of speed, reusability, and water resistance. However, choosing the right sheet pile shoring system depends on soil type, excavation depth, and project requirements in Dubai and UAE.

For long-term success, always consult experienced engineers and choose the best shoring contractors who specialize in sheet pile shoring to ensure your project is safe, compliant, and cost-effective.
